Road sign triangle side 90 sheet metal class 2 fig. 36 give way

Features:

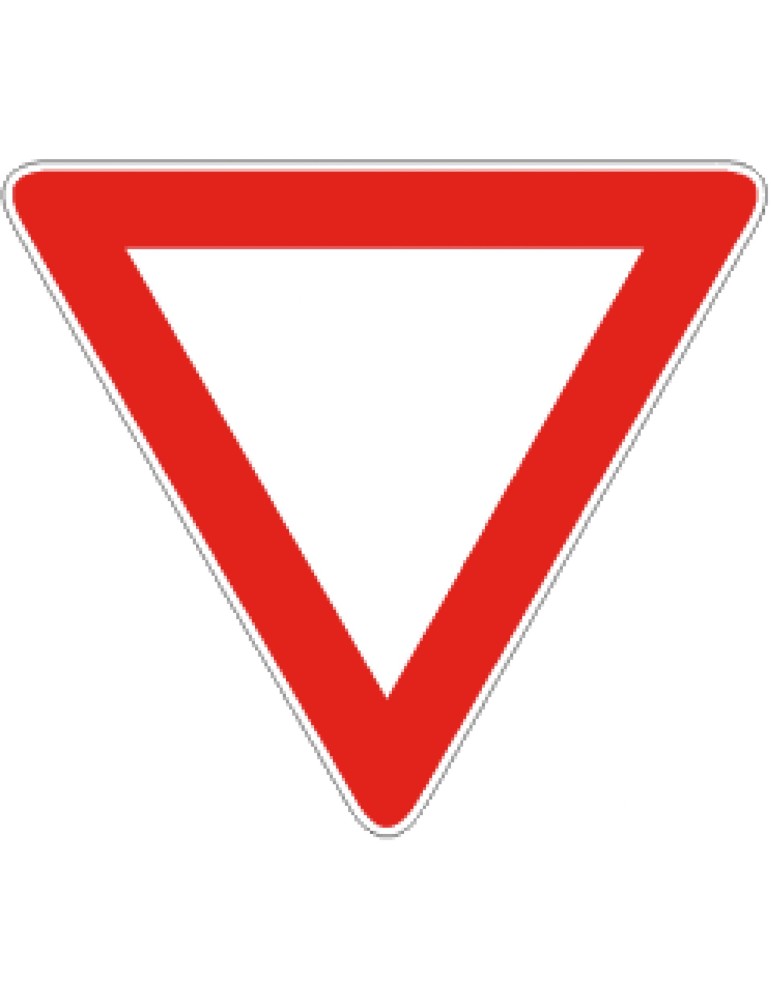

NAME: Triangle side 90 sheet metal class 2 fig. 36 " give way "

Signal description: "Give way" (Fig. II 36):

• Official name: Give way
• Shape: Triangular with vertex down
• Side: 90 cm
• Normative figure: II 36
• Reflective film class: Class 2
• Material: Sheet metal (normally galvanized steel or aluminum)


Technical features:

• Geometric shape: Equilateral triangle with the vertex facing downwards, a conventional symbol for "giving way".
• Dimensions: 90 cm side (a size commonly used for main urban roads or secondary extra-urban roads).
• There are also variants with sides of 60 cm (minor urban roads) or 120 cm (main extra-urban roads).
• Edge: red reflective band 8–10 cm thick.
• Interior: reflective white background.
• Frame: metal edge or aluminum profile to ensure rigidity and durability.


Reflectivity class:

• Class 2: high refractive film, used for signs placed on roads with medium-high traffic or poor lighting.
• Provides better visibility at night than Class 1.


Meaning and Usage:

• The "Give way" sign imposes on drivers the obligation to slow down and give way to vehicles circulating on the road they are entering.
• It does not require a mandatory stop (like the "Stop"), but the driver must ensure that the transit can take place without creating an obstacle or danger.


Installation:

• Location: Right side of the roadway, immediately before the intersection.
• Lower edge height from the ground: 1.50–2.20 m (depending on the type of road).
• Tilt: slightly facing the road to optimize visibility.
