Disc sign Maximum speed limit 30 km/h Disc Diameter 60 cm Class 1 Fig. 50 Aluminium sheet

Ensure safety with the 30 km/h Speed Limit Sign in Class 1

Our 30 km/h maximum speed limit road sign (Figure 50) is a must-have solution for traffic management and safety in areas where low-speed traffic is required. Made of high-quality materials and compliant with current regulations, this vertical prescription sign is ideal for public bodies, private companies and infrastructure managers who need a reliable and durable device.

Technical characteristics and compliance

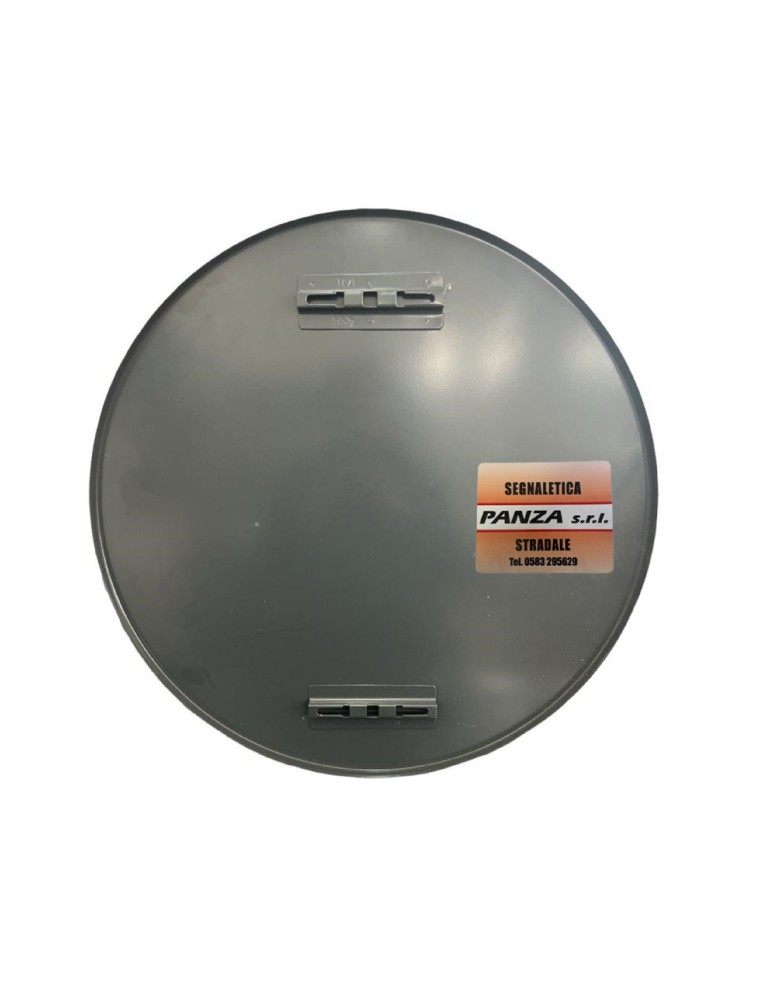

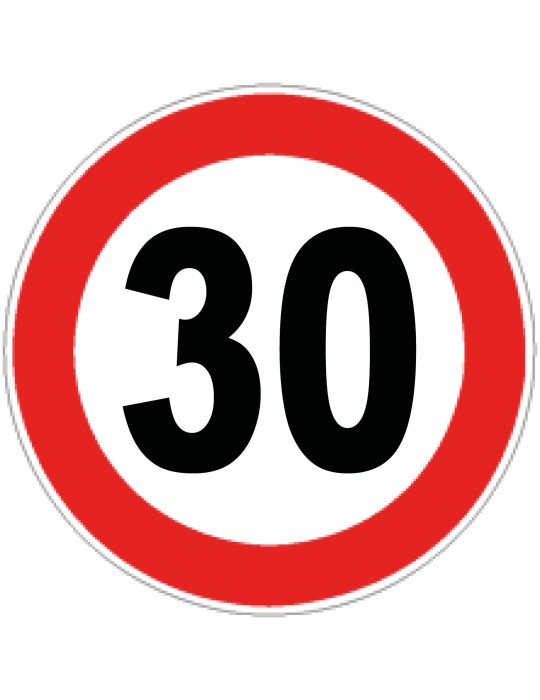

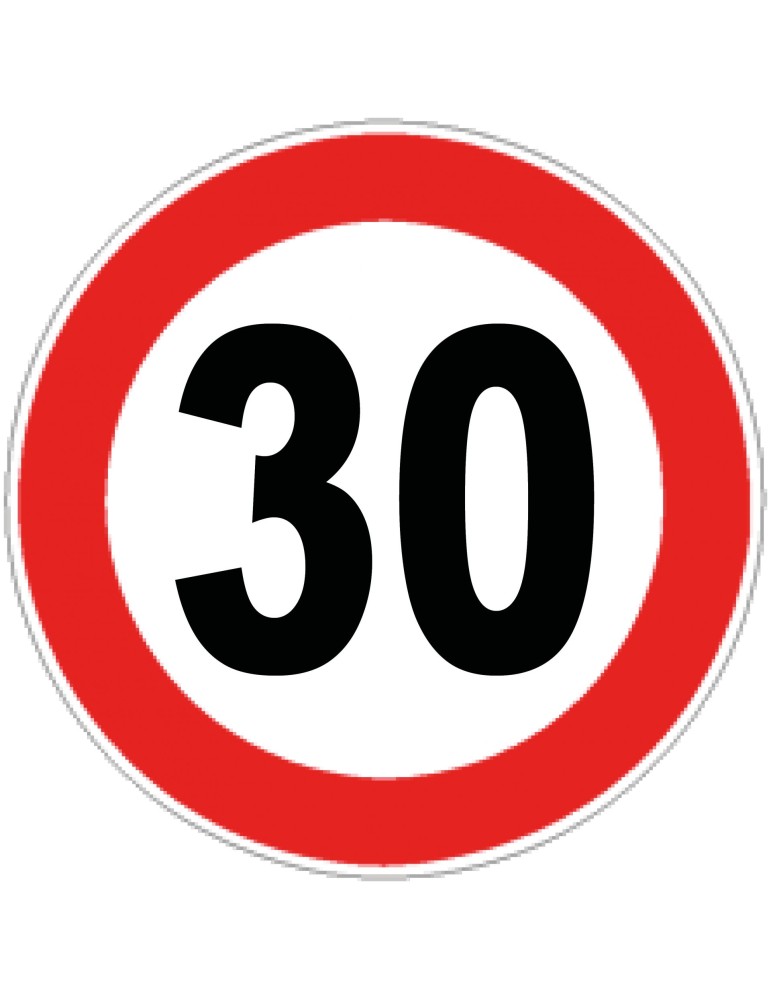

This sign, with a diameter of 60 cm, is made of 25/30 tenths thick aluminum sheet, EN AW 5754 H22 alloy, guaranteeing strength and lightness. The perimeter reinforcement with anti-cut edge and an omega back profile ensures high structural rigidity and a long service life. The Class 1 reflective film, compliant with the UNI EN 12899-1 standard, guarantees excellent day and night visibility, which is essential for road safety. The design fully respects Figure 50 of the Highway Code, with a white background, red circular border and the number "30" in black well centered.

Applications and intended use

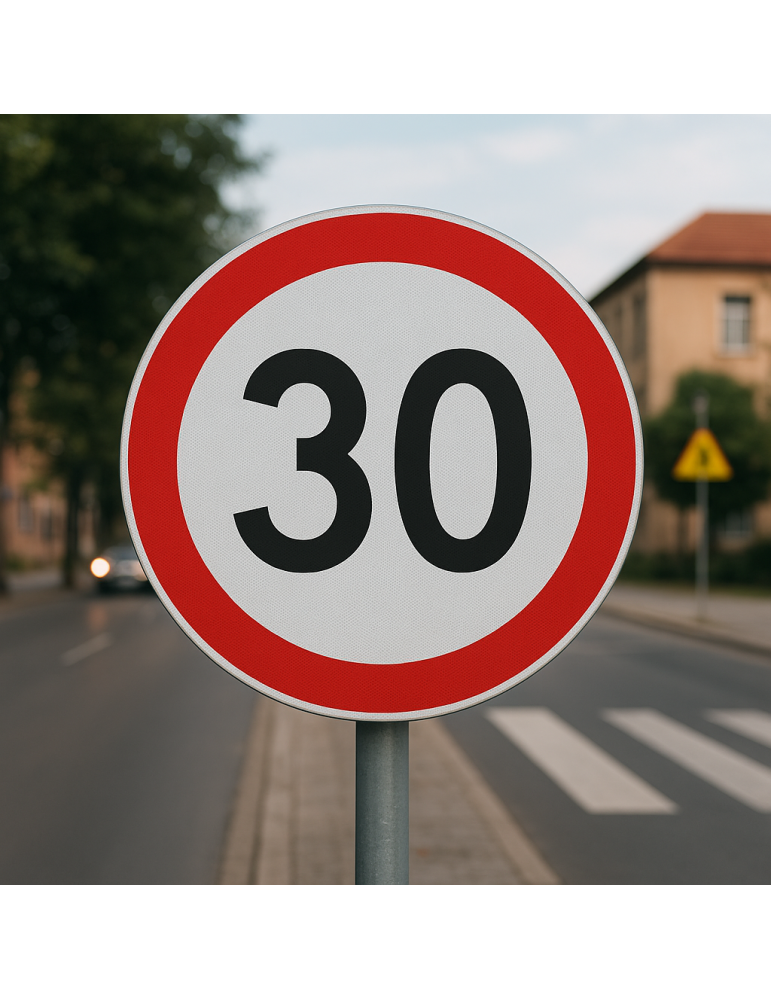

Designed for easy installation thanks to pre-drilled holes, the sign is suitable for use on standard 48mm poles or custom mounts. It is used in a wide range of settings, including:

• Private or industrial areas, to regulate internal speed.
• Public or private parking lots, to improve the safety of pedestrians and vehicles.
• Residential areas, to promote peace of mind and reduce the risk of accidents.
• Cycle paths or restricted traffic areas, where low speed is crucial.
• Temporary construction sites or areas with limited traffic, to warn of dangers and restrictions.

With an expected durability of 7 years and proven weather resistance, this sign is a safe investment for vertical signage.

Frequently Asked Questions

What is the estimated duration of the cartel?

The expected durability of the sign is approximately 7 years, which varies according to the exposure and the specific environmental conditions of the installation site.

Does the sign comply with Italian regulations?

Yes, the sign fully complies with the Highway Code (Legislative Decree 285/1992), the Implementing Regulation (Presidential Decree 495/1992) and the UNI EN 12899-1:2007 standard for permanent vertical signage devices.

Can I install this sign on any type of pole?

The sign is prepared with holes for mounting on standard 48 mm poles, but can also be adapted to custom mounts.
