Class 1 40x60 sheet metal plate fig. 410/b " recommended truck direction "

Features:

Name:
• Class 1 sheet metal plate – Figure 410/b – "RECOMMENDED TRUCK DIRECTION"

Type:
• Vertical road signs for prescription/information – recommended indication sign for heavy vehicles

Usage:
• Indicates a specific recommended direction for trucks (heavy vehicles), generally in urban or suburban areas, to facilitate circulation and reduce the impact on sensitive areas (built-up areas, narrow streets, schools, etc.).


Technical features

• Material: Galvanized sheet metal or flat aluminum

• Reflective material class: Class 1 (standard reflectivity, for use in contexts with ordinary visibility)

• Dimensions: 40 x 60 cm (width x height)

• Figure: 410/b according to the Regulations for the Implementation of the Highway Code (Annex II - Indication signs)

• Background colour: Yellow (typical of indication signs)

• Graphic symbol: White truck silhouette oriented in the recommended direction (arrow)

• Frame: Perimeter Black Edge

Construction details

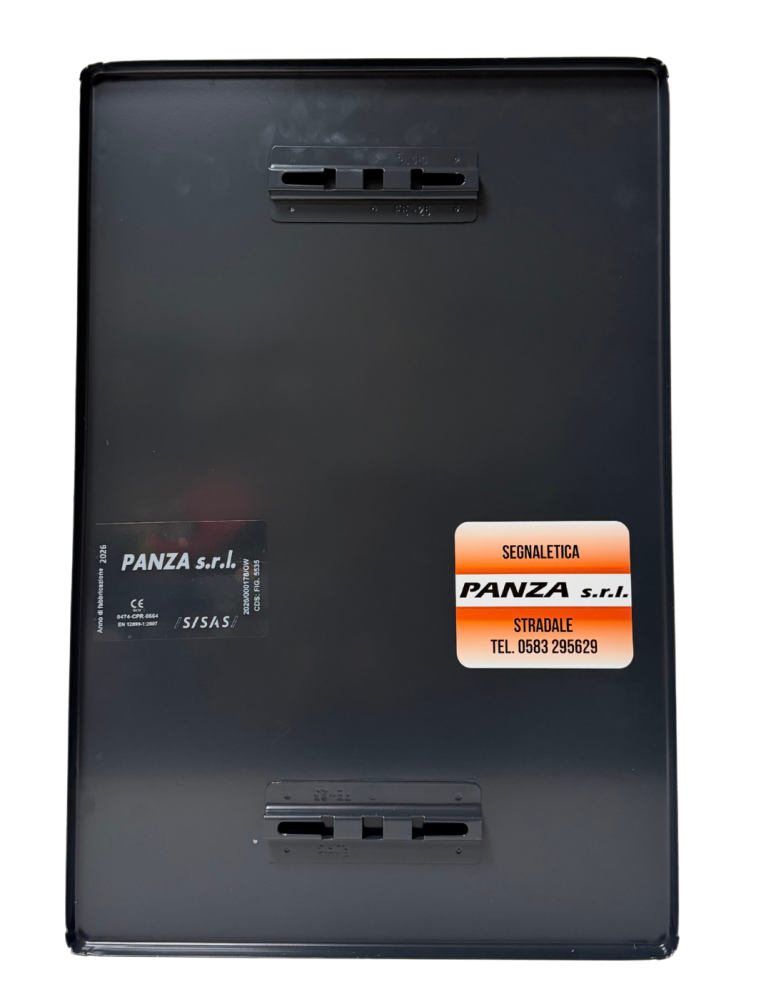

• Edging: Anti-cut folded at the rear

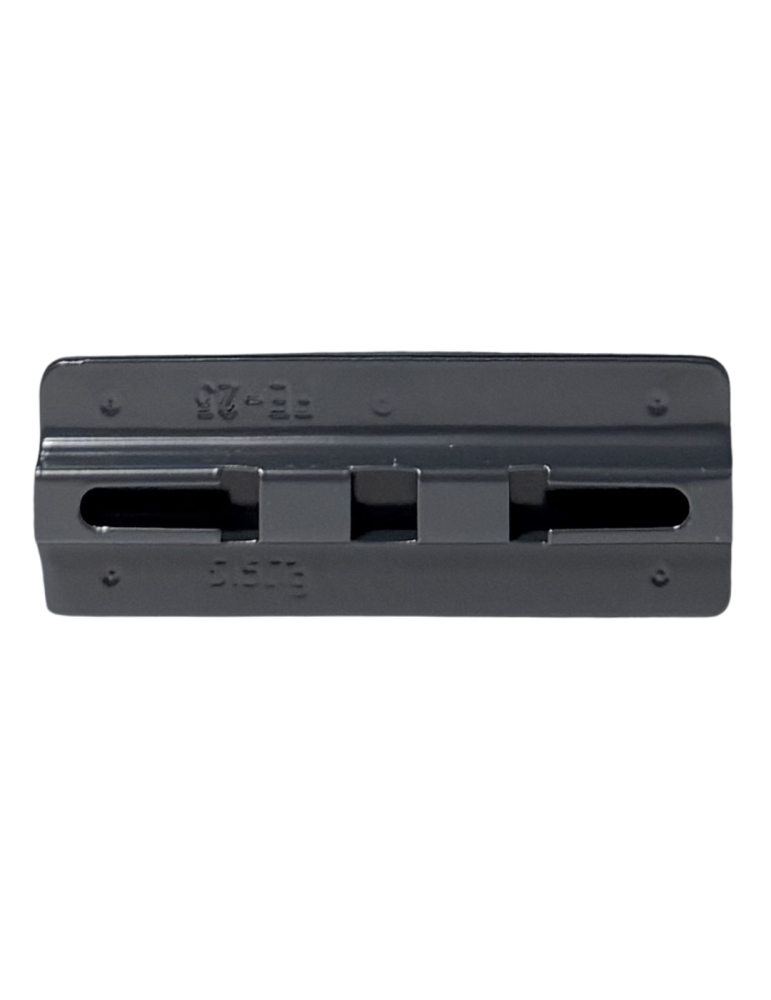

• Fixing holes: Prepared for attachment on poles, walls or load-bearing structures

• Durability: Resistant to atmospheric agents, compliant with UNI and CE regulations

• Optional: Anti-UV protective film or anti-scratch treatment


Regulatory Compliance

• Compliant with the Highway Code (Legislative Decree 285/1992) and related Implementing Regulations (Presidential Decree 495/1992)

• Complies with the requirements for Class 1 of refractive (UNI EN 12899-1 standard)
