Via Libera Disc Sign Diameter 60 cm Class 1 Fig. 70 Aluminium

The Road Sign Green Light: End of the Regulations for Smooth Traffic

The "Via Libera" road sign, identified as Figure 70 according to art. 83 of the Regulations for the execution and implementation of the Highway Code, is a vertical prescription sign that is fundamental for traffic management. Its main function is to indicate to road users the end of all previously imposed requirements, whether they are obligations or prohibitions. This allows ordinary traffic conditions to be restored, contributing to greater traffic fluidity and safety. It is a key element in clarifying and simplifying signage, avoiding confusion and uncertainty for drivers.

Technical Features and Superior Quality Materials

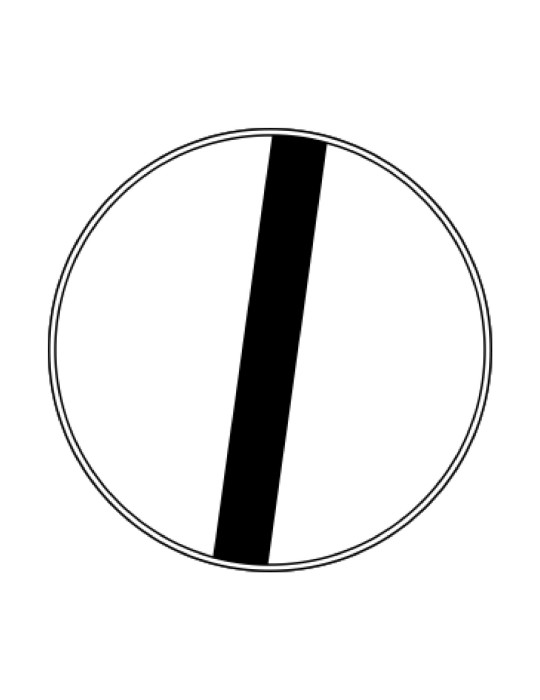

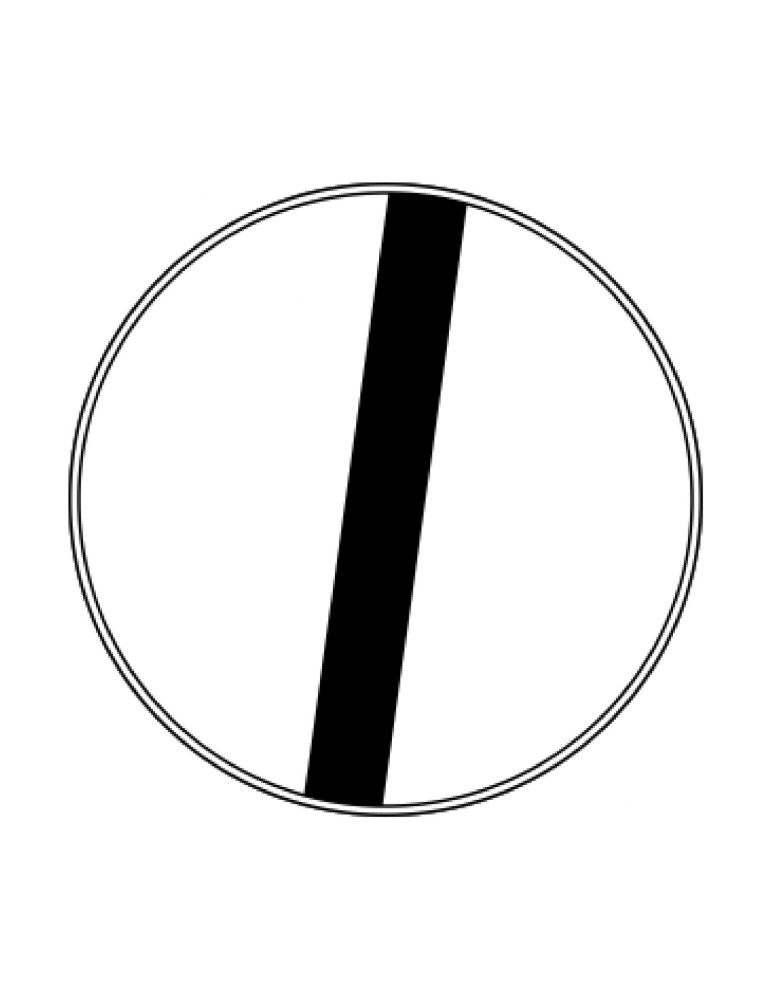

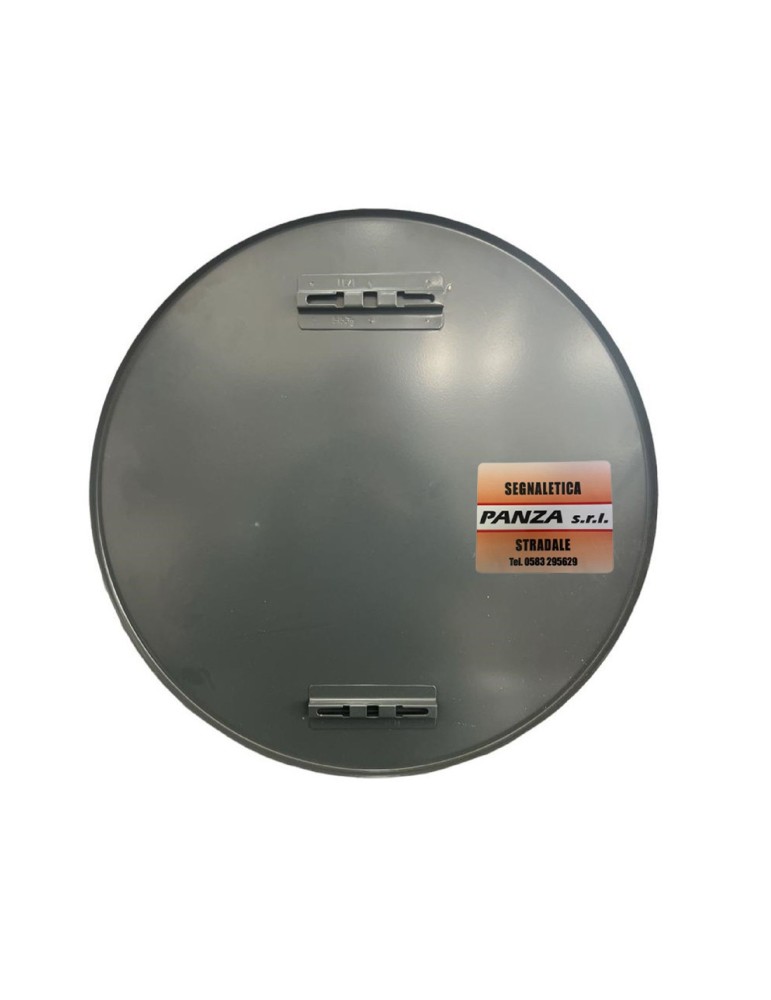

This sign is made of a resistant aluminum sheet alloy EN AW 5754 H22, 25/30 tenths thick, ensuring robustness and durability over time. The rounded anti-cut edge and the rear reinforcement with omega profile or stiffening edge increase its safety and structural strength. The circular disc, with a diameter of 60 cm, is equipped with a Class 1 reflective film, compliant with the UNI EN 12899-1:2007 standard. This film ensures optimal visibility both day and night, in standard light conditions, with an average life of about 7 years, resistant to atmospheric agents, UV rays and temperature changes. The sign has a white background with a black border and a black diagonal band, devoid of additional symbols for its specific function of "green light".

Regulatory Compliance and Scope

The "Via Libera" road sign is fully compliant with current regulations, including Legislative Decree 285/1992 (Highway Code) and Presidential Decree 495/1992 (Implementing Regulation), as well as UNI EN 12899-1:2007 for permanent vertical signs. It has pre-drilled holes, compatible with Ø 48 mm and Ø 60 mm poles and their brackets and support accessories, facilitating quick and safe installation. This sign is essential at the end of road sections subject to speed limits, obligations or prohibitions, at the end of construction sites or detours, or in any context where it is necessary to indicate the cessation of the previous prescriptions and the restoration of ordinary traffic.

Frequently Asked Questions about the Via Libera Road Sign

What is the "Green Way" sign for?

The "Via Libera" sign indicates the end of all requirements previously imposed by mandatory or prohibition signs, such as speed limits or overtaking prohibitions. Its purpose is to restore ordinary traffic conditions.

What are the characteristics of the material and the film?

The sign is made of aluminium sheet EN AW 5754 H22 alloy (thickness 25/30 tenths) with rounded edge and rear reinforcement. The reflective film is Class 1, ensuring excellent day and night visibility and resistance to atmospheric agents for about 7 years.

Does this sign comply with regulations?

Yes, the "Via Libera" sign complies with Legislative Decree 285/1992 (Highway Code), Presidential Decree 495/1992 (Implementing Regulation) and UNI EN 12899-1:2007 for permanent vertical signs.
