Road sign Outlet on pier or embankment Triangle Side 90 cm Class 1 Fig. 28 Sheet metal or Aluminium

Road Sign "Outlet on Pier or Embankment" - Top Safety

The road danger sign "Outlet on pier or embankment", identified by figure II 28 of the Manual of Traffic Signs, is a fundamental device for the prevention of accidents in areas at risk. Its function is to promptly alert road users to the presence of a path that ends abruptly on piers, docks, embankments or other surfaces where there is a danger of falling into the water. Essential for road safety, this sign guarantees maximum visibility in all conditions.

Technical and Construction Features

This sign is designed to the strictest safety and durability standards:

Shape and Size: It looks like an equilateral triangle with a side of 90 centimeters. This size is optimal for ensuring adequate perception at a distance, both in urban and extra-urban contexts, fully complying with the regulations in force for danger signs.

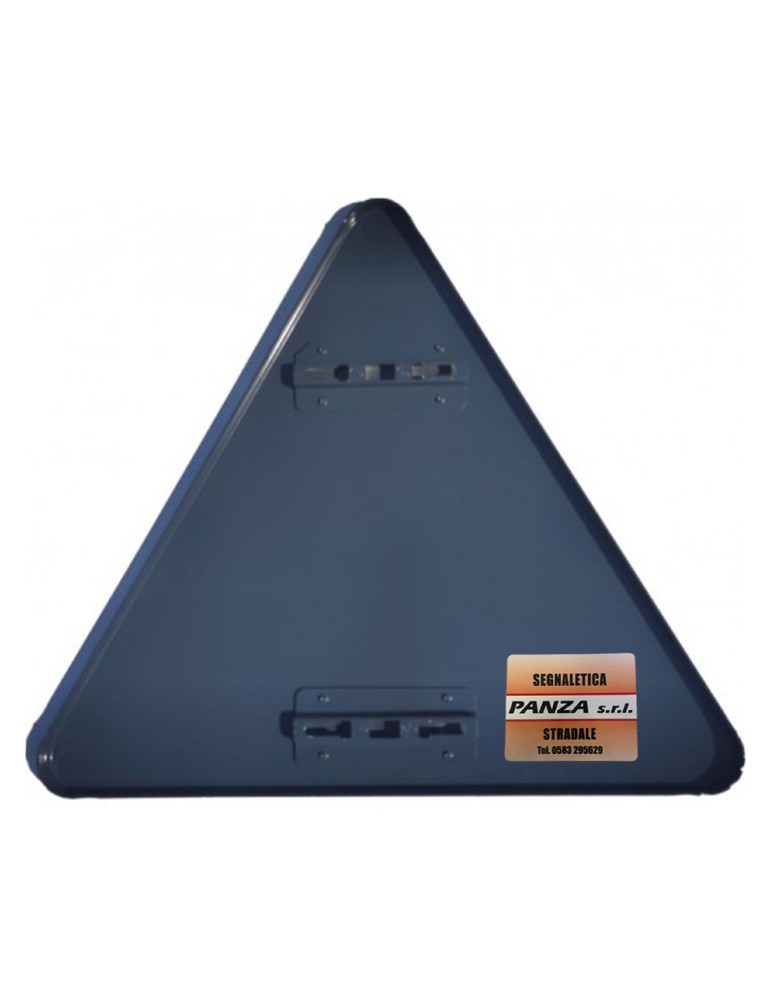

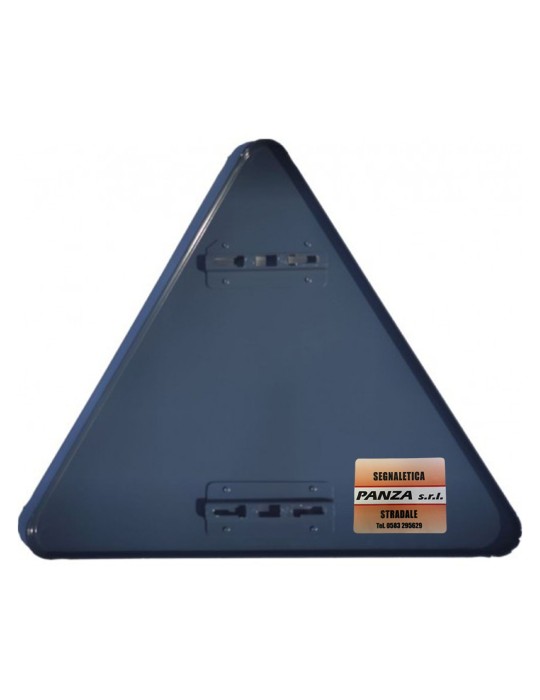

High Quality Materials: Made of metal sheet with a thickness of 1 mm (iron 10/10) or, alternatively, of aluminum with a thickness of 2.5 mm (25/10). Both options guarantee robustness and resistance. The sheet metal is shaped and edged with a stiffening perimeter profile that increases its stability and durability, even in the presence of adverse weather conditions.

Class 1 Reflectivity: The signal is coated with a Class 1 reflective film. This technology, compliant with the European standard EN 12899-1, ensures a minimum reflectance essential to ensure the correct visibility of the signal during the night hours or in low light situations, improving the safety of all users.

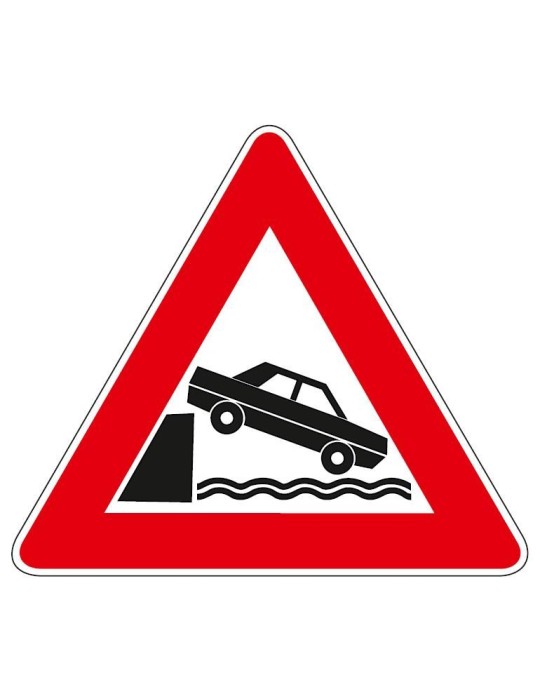

Clear and Recognizable Symbology: The sign has a white background with a red border, about 10% wide of the side. In the center, a stylized black symbol unequivocally represents the risk situation: a road leading to wavy lines (water) and a shoulder or wall. This graphic conforms to figure II 28 of the Manual of Road Signs and to Presidential Decree 16 December 1992 n. 495.

Optimal Function and Installation

The "Outlet on pier or embankment" sign has a crucial preventive warning function, protecting motorists and other road users from imminent dangers. Its correct installation is vital to maximize its effectiveness:

Risk Prevention: By warning in advance of the presence of a road section that ends near bodies of water, the signal allows drivers to reduce speed and take the necessary safety measures, preventing potentially serious accidents.

Installation Guide: To ensure maximum visibility and adequate reaction time, the sign must be placed at a regulatory distance from the hazard point, generally varying between 25 and 150 meters, depending on the maximum speed allowed. It must be mounted on a rigid pole, with the base of the signal about 1.5-2 meters above the road surface, in a position free from visual obstacles.

Frequently Asked Questions (FAQ) on the "Outlet on Pier or Embankment" Sign

What is the purpose of the "Outlet on pier or embankment" sign?

It serves to warn road users of the presence of a stretch of road that ends on a pier, a quay or an embankment, indicating a potential danger of falling into the water and inviting them to be extremely cautious.

What are the standard sizes and shape of this sign?

This warning sign has the shape of an equilateral triangle with a side of 90 centimeters, dimensions that make it clearly visible and compliant with the regulations for road signs.

What does "Class 1" mean for a traffic sign?

Class 1 indicates the level of refraction of the film applied to the signal. It ensures adequate minimum visibility in low light conditions or at night, reflecting the light from vehicle headlights, according to the European standard EN 12899-1.

What material is the signal made of?

The sign is made of metal sheet (10/10 iron) or, alternatively, aluminum (25/10). Both materials are shaped and edged to give greater strength and durability, even in harsh outdoor environments.
